Product Details:
|
| Product Name: | PSA Nitrogen Generator | Material: | Steel |
|---|---|---|---|
| Color: | Bright Or Customized | Oxygen Output: | ≤100Nm3/hr |
| Purity: | 99.99% | Pressure: | 0.4~1.0Mpa |
| Atmospheric Dew Point: | ≤－40℃ | ||
| High Light: | High Purity Supply PSA Nitrogen Generator,PSA Nitrogen Generator 0.4Mpa,Industrial PSA Nitrogen Gas Generator |
||
The Ideal Choice For Flexibility And High Purity Supply Of PSA Nitrogen Generator
|
Product name |
PSA Nitrogen Generator |
|
Nitrogen delivery |
≤100Nm3/hr |
|
Purity |
99.99% |
|
Pressure |
0.4~1.0 Mpa |
|
Atmospheric dew point |
≤－40℃ |
Working Principle Description:
Adsorption Phase:
Compressed air, containing nitrogen (N2) and oxygen (O2), is introduced into one adsorption tower at high pressure.
The specialized adsorbent material, such as carbon molecular sieves (CMS), present in the adsorption tower selectively adsorbs the oxygen molecules, allowing the nitrogen molecules to pass through.
The nitrogen-enriched gas, depleted in oxygen, exits the adsorption tower and is collected as the desired product.
Regeneration Phase:
While one adsorption tower is in the adsorption phase, the other tower undergoes regeneration.
The pressure in the regeneration tower is reduced, which releases the adsorbed oxygen molecules from the adsorbent material (CMS).
The released oxygen is discharged from the system, while the adsorbent material is prepared for the next adsorption cycle.
Switching Cycles:
After a certain period, the roles of the adsorption and regeneration towers are reversed to maintain a continuous nitrogen supply.
The flow of compressed air is switched to the regenerated tower, while the previously adsorbing tower enters the regeneration phase.
This cyclic process allows for uninterrupted nitrogen production.
Product Advantages:
Flexibility:
The system allows for flexibility by adjusting various parameters such as pressure, cycle time, and the ratio of adsorption and regeneration time.
These adjustments can be made to meet specific requirements, including nitrogen purity and flow rate, catering to different applications.
High Purity Supply:
The PSA nitrogen generator utilizes the selective adsorption properties of the adsorbent material, such as CMS, to separate oxygen and nitrogen molecules.
The adsorbent material preferentially adsorbs oxygen, allowing high purity nitrogen (typically ranging from 95% to 99.99% or higher) to be produced as the desired output.
Technical parameters:
● Nitrogen delivery ≤100Nm3/hr;
● Purity 99.99%
● Pressure 0.4~1.0 Mpa
● Atmospheric dew point ≤－40℃

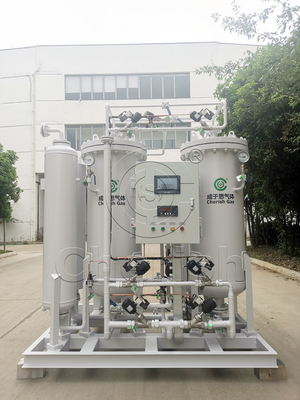

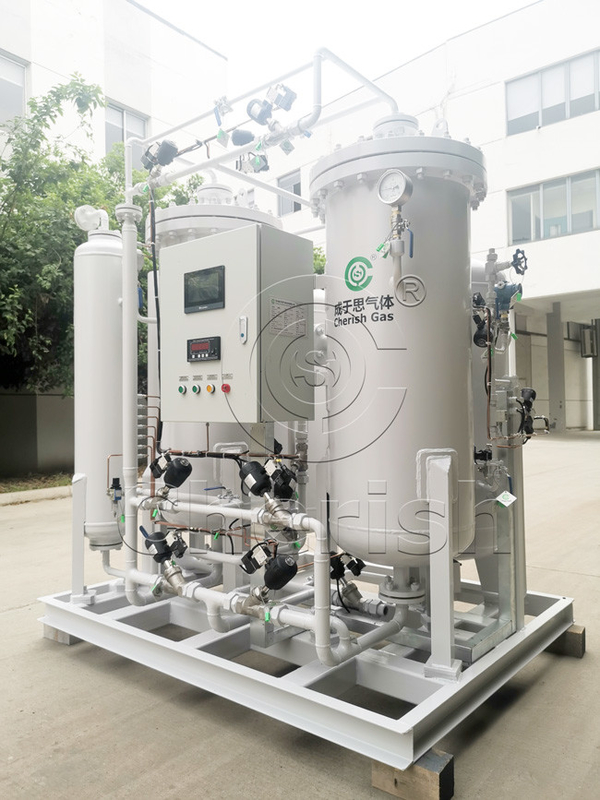

Product picture:
