Product Details:
|
| Material: | Steel | Color: | Bright Or Customized |
|---|---|---|---|
| Oxygen Output: | ≤12Nm3/hr | Purity: | 93%±3 |
| Pressure: | 0.4~1.0Mpa | Atmospheric Dew Point: | ≤－40℃ |
| High Light: | Aluminium Soldering PSA Oxygen Generator,Aluminium Soldering Psa Oxygen Concentrator,1.0Mpa Pressure Swing Adsorption Oxygen Plant |
||
PSA Oxygen Generator With Convenient Maintenance And Low Operation Cost , Can Be Assembled In A Complete Set
| Product name |
PSA Oxygen Generator |
| Oxygen delivery |
≤12Nm3/hr |
| Purity |
93%±3 |
| Pressure |
0.4~1.0 Mpa |
| Atmospheric dew point |
≤－40℃ |
Working Principle Description:
The compressed air removes oil, dust and other solid impurities and most of the gaseous water through the pretreatment system, and enters the adsorption tower with zeolite molecular sieve (ZMS). Nitrogen, carbon dioxide and water vapor in the air are adsorbed by the adsorbent, and oxygen is separated through the adsorption bed. When the adsorbed impurities in the adsorption tower reach a certain degree, they will be desorbed into the atmosphere to regenerate the adsorbent. The adsorption and separation system composed of two and three towers is switched under the automatic control of PLC system to complete continuous oxygen production. This process is called PSA (pressure swing adsorption) oxygen production principle.
Product Advantages:
●The PSA oxygen generator is assembled in a complete set, with convenient maintenance, low operation cost, fast on-site oxygen production, convenient switching and no pollution;
● The cost of gas separation is low, and the main operating cost is power consumption;
●PSA process is a simple method to produce oxygen, which can be produced in a few minutes after start-up;
● Molecular sieve has a long service life and can be used for 8-10 years through formal and professional filling and filtration treatment;
●Reasonable structure, advanced process, safety and stability, low energy consumption;
●PSA oxygen generation mechanism has the advantages of high oxygen content and low energy consumption, and the oxygen purity can be adjusted arbitrarily within a certain range.
Application fields:
PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.
Technical parameters:
● Oxygen delivery: ≤12Nm3/hr;
● Purity: 93%±3
● Pressure: 0.4~1.0 Mpa
● Atmospheric dew point: ≤－40℃

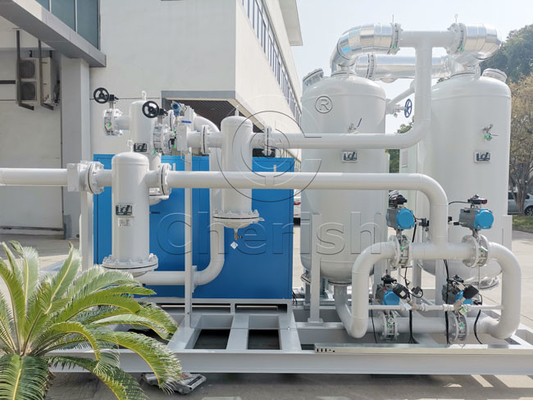

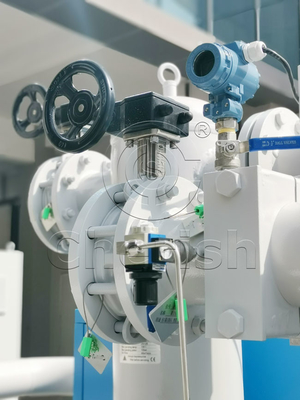

Product picture:
