Product Details:
|
Material: | Steel | Color: | Bright Or Customized |
---|---|---|---|
Oxygen Output: | ≤132 Nm3/hr | Purity: | 93%±3 |
Pressure: | 0.4~1.0Mpa | Atmospheric Dew Point: | ≤-40℃ |
Highlight: | 132 Nm3/Hr Molecular Sieve Oxygen Generator,Skid Mounted Molecular Sieve Oxygen Generator,Molecular Sieve Oxygen Gas Generator |
High Efficient Molecular Packing Technology For Structure Tighter , More Solid And Longer Service Life Of Oxygen Plant
Product name |
PSA Oxygen Generator |
Oxygen delivery |
≤132Nm3/hr |
Purity |
93%±3 |
Pressure |
0.4~1.0 Mpa |
Atmospheric dew point |
≤-40℃ |
Working Principle Description:
When the air passes through the adsorption bed with molecular sieve under pressure, nitrogen is adsorbed by molecular sieve, and the oxygen is less adsorbed and flows out of the adsorption bed, so as to separate nitrogen and obtain oxygen. When the nitrogen adsorbed by molecular sieve is close to saturation, stop the input of air and reduce the pressure of adsorption bed, the nitrogen adsorbed by molecular sieve can be desorbed, and the molecular sieve can be regenerated and reused. The equipment through the adsorption tower, one tower adsorption oxygen, one tower desorption regeneration, cycle alternately, continuous production of oxygen.
Product Advantages:
· High efficient molecular packing technology makes the molecular structure tighter, more solid and longer service life;
· Perfect process design and selection of new molecular sieve;
· The best efficient use of molecular sieve for the plant so that longer working span of the plant;
· The equipment is compact in structure, skid mounted as a whole, easy to move, small in floor area, and no infrastructure construction is needed;
· The equipment runs automatically and no workers are needed in the whole production process;
· The pressure, purity and capacity are stable and adjustable to meet the different needs of customers.
Application fields:
PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.
Technical parameters:
● Oxygen delivery: ≤132Nm3/hr;
● Purity: 93%±3
● Pressure: 0.4~1.0 Mpa
● Atmospheric dew point: ≤-40℃

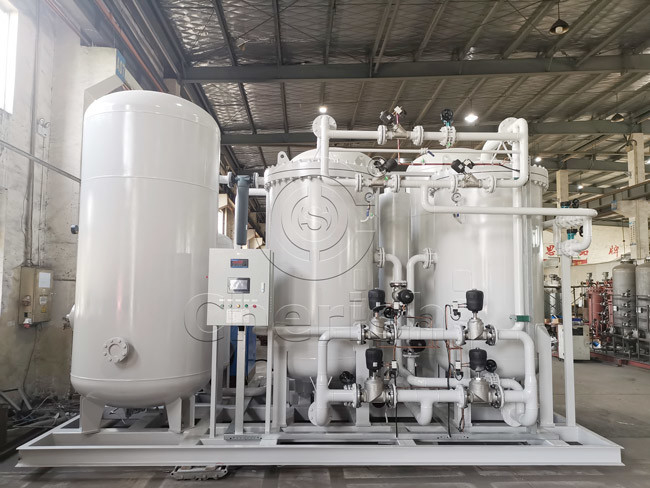

Product picture:
