Product Details:
|
| Product Name: | PSA Oxygen Generator | Material: | Steel |
|---|---|---|---|
| Color: | Bright Or Customized | Oxygen Output: | ≤75Nm3/hr |
| Purity: | 93%±3 | Pressure: | 0.4~1.0Mpa |
| Atmospheric Dew Point: | ≤－40℃ | ||
| High Light: | PSA Oxygen Making Machine,ZMS Inside Oxygen Making Machine,Compact Molecular Sieve Oxygen Generator |
||
ZMS Inside , Compact Structure Of Oxygen Making Machine
|
Product name |
PSA Oxygen Generator |
|
Oxygen delivery |
≤75Nm3/hr |
|
Purity |
93%±3 |
|
Pressure |
0.4~1.0 Mpa |
|
Atmospheric dew point |
≤－40℃ |
Working Principle Description:
The compressed air is removed from oil, dust and other solid impurities and most of the gaseous water by the pretreatment system, and enters the adsorption tower equipped with zeolite molecular sieve (ZMS).
The nitrogen, carbon dioxide and water vapor in the air are absorbed by the adsorbent, and the oxygen is separated through the adsorption bed. When the adsorbed impurities in the adsorption tower reach a certain degree, they will enter the atmosphere for desorption and desorption to regenerate the adsorbent.
The adsorption and separation system composed of two towers is circularly switched under the automatic control of PLC system to complete continuous oxygen production. This process is called pressure swing adsorption (PSA) oxygen production principle.
Product Advantages:
· Compact design with skid mounted brings less limit for situation on site;
· Easy to maintain with continuously monitored purity & flow;
· Fully automatic control and completely unattended;
· High quality ZMS and spare parts can serve for a long time.
Technical parameters:
● Oxygen delivery ≤75Nm3/hr;
● Purity 93%±3
● Pressure 0.4~1.0 Mpa
● Atmospheric dew point ≤－40℃

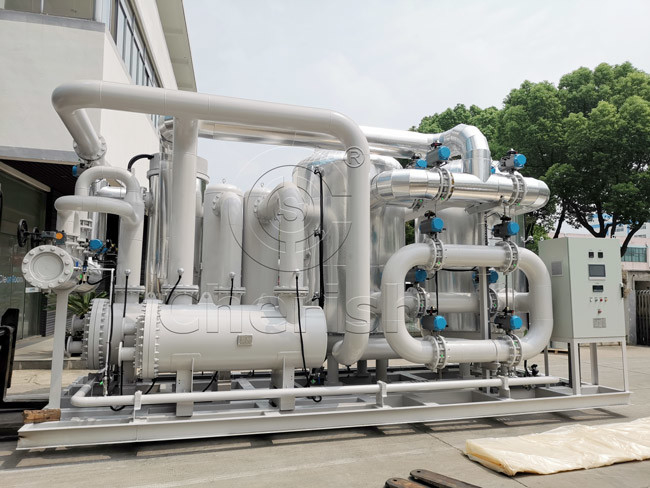

Product picture:
