Efficient Reliable VPSA Oxygen Generator Stable Operation Ensuring Simplicity And Reliability

Efficient And Reliable VPSA Oxygen Generator With Stable Operation , Ensuring Simplicity And Reliability

Working Principle Description:

The working principle of an efficient and reliable VPSA (Variable Pressure Swing Adsorption) oxygen generator is as follows:

Air Compression: Ambient air is drawn into the oxygen generator and compressed using a compressor. The compressor selection and performance are crucial for the efficiency and reliability of the system.

Pretreatment: The compressed air undergoes pretreatment in a pre-processing unit to remove moisture and impurities through processes such as drying and filtration. This step helps protect the adsorbent beds and enhances system stability and longevity.

Adsorbent Beds: The VPSA oxygen generator consists of multiple adsorbent beds, each filled with a specific adsorbent material such as a molecular sieve. These adsorbents selectively adsorb nitrogen, leading to oxygen enrichment.

Adsorption Phase: Compressed air enters one of the adsorbent beds where the nitrogen is selectively adsorbed by the adsorbent, allowing oxygen to pass through and be collected. Meanwhile, other adsorbent beds continue operating to ensure continuous oxygen production.

Desorption Phase: When an adsorbent bed becomes saturated with adsorbed nitrogen, it needs to be regenerated. By reducing the pressure and temperature in the bed, the adsorbent releases the adsorbed nitrogen, which is then discharged from the system.

Bed Switching: While one adsorbent bed undergoes desorption, the other beds continue adsorbing nitrogen. By alternating the operation of the adsorbent beds, a continuous cycle of adsorption and desorption is achieved, ensuring a steady supply of oxygen.

Oxygen Collection and Purification: The oxygen released during the desorption phase is collected and undergoes purification to remove residual nitrogen and other impurities. This purification process may involve molecular sieves, filters, and other purification systems to ensure high-purity oxygen output.

Oxygen Storage and Supply: The purified oxygen is stored in gas tanks or pressure vessels and supplied as needed to medical facilities, industrial processes, or other applications.

An efficient and reliable VPSA oxygen generator achieves high efficiency and reliability by optimizing adsorbent selection, proper bed switching, and effective oxygen purification systems. Additionally, the design and operational parameters of the system play a crucial role in performance. These measures ensure that the oxygen generator can provide a stable and efficient supply of high-quality oxygen to meet various application requirements.

Product Advantages:

The high efficiency and reliability of VPSA (Vacuum Pressure Swing Adsorption) oxygen generators are reflected in the following aspects:

High oxygen production efficiency: VPSA oxygen generators can efficiently extract oxygen from the air. By utilizing adsorption technology and separating oxygen and nitrogen using adsorbents, the oxygen production process is fast and efficient, providing the required oxygen supply with high efficiency.

Continuous and stable oxygen supply: VPSA oxygen generators can continuously and stably provide oxygen supply. The design and operational cycle ensure a continuous oxygen production process, offering uninterrupted oxygen supply. This continuous and stable oxygen supply capability is crucial in medical and industrial applications, ensuring reliable access to oxygen.

Automated control: VPSA oxygen generators are typically equipped with advanced automated control systems that can monitor and adjust critical parameters in real-time. These systems automatically optimize operational parameters according to the set requirements, enhancing oxygen production performance and efficiency. Automated control ensures the efficient operation of the oxygen production process, reducing human errors and influences.

High purity oxygen: VPSA oxygen generators can provide high-purity oxygen. By adjusting operational parameters and selecting appropriate adsorbents, the desired oxygen purity can be achieved. High-purity oxygen is essential for ensuring safety and quality in both medical and industrial applications.

Durability and reliability: VPSA oxygen generators are designed and manufactured with a focus on durability and reliability. They utilize high-quality materials and components, undergo rigorous quality control and testing. This ensures long lifespan and stability of the equipment, reducing failures and maintenance requirements, and improving reliability and availability.

Real-time monitoring and fault diagnosis: Many VPSA oxygen generators are equipped with real-time monitoring and fault diagnosis systems, capable of continuously monitoring the operational status and identifying potential issues. This helps reduce downtime and enables more efficient and accurate maintenance work, enhancing the reliability and availability of the equipment.

In summary, the high efficiency and reliability of VPSA oxygen generators are evident in their high oxygen production efficiency, continuous and stable oxygen supply, automated control, high purity oxygen output, durability and reliability, as well as real-time monitoring and fault diagnosis capabilities. These features make VPSA oxygen generators an ideal choice in various industries, meeting the demand for reliable and efficient oxygen supply.

Technical characteristics of pure oxygen outlet:

Production:600 Nm3/h

Purity:90%--93%

Pressure:0.2—0.3Mpa

Atmospheric dew point:-60℃(under normal pressure)

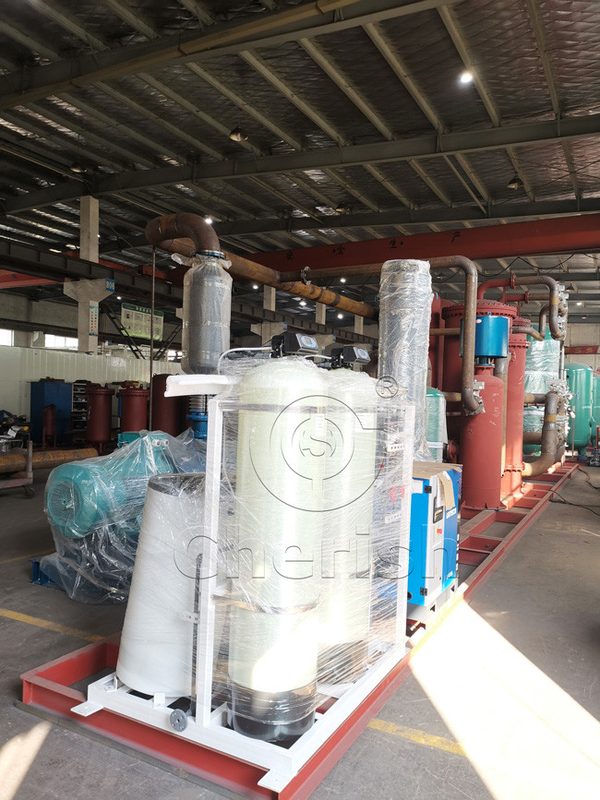

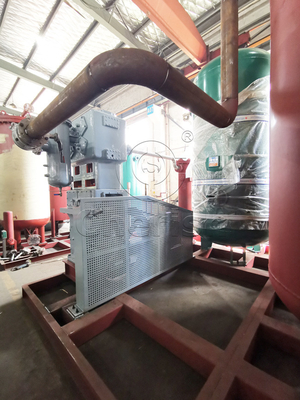

Product Picture:
