PSA Oxygen Plant With Flow And Purity Automatic Regulation System

PSA Oxygen Plant With  Flow And Purity Automatic Regulation System
PSA Oxygen Plant With  Flow And Purity Automatic Regulation System PSA Oxygen Plant With  Flow And Purity Automatic Regulation System

Large Image :  PSA Oxygen Plant With Flow And Purity Automatic Regulation System

Product Details:
Place of Origin: China
Brand Name: Cherish
Model Number: PO-75-93
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood box
Delivery Time: Within 3~4 months after receiving deposit
Payment Terms: T/T
Supply Ability: 60 sets/ month

PSA Oxygen Plant With Flow And Purity Automatic Regulation System

Description
Material: Steel Color: Bright Or Customized
Oxygen Output: ≤75 Nm3/hr Purity: 93%±3
Pressure: 0.4~1.0 Mpa Atmospheric Dew Point: ≤-40℃
High Light:

ZMS PSA Oxygen Plant

,

Remote Monitoring PSA Oxygen Plant

,

ZMS PSA Oxygen Gas Generator

PSA Oxygen Plant With Optional Oxygen Device , Flow And Purity Automatic Regulation System And Remote Monitoring System



Product name

PSA Oxygen Generator

Oxygen delivery

≤75Nm3/hr

Purity

93%±3

Pressure

0.4~1.0 Mpa

Atmospheric dew point

≤-40℃



Working Principle Description:

With dry and clean air as raw material and zeolite molecular sieve as adsorbent, the adsorption capacity of zeolite molecular sieve for nitrogen increases when pressurized at room temperature, while the adsorption capacity of zeolite molecular sieve for nitrogen decreases when depressurized. A cyclic process of pressurized adsorption and depressurized desorption is formed. 78% nitrogen and 21% oxygen in air are separated to produce oxygen.



Product Advantages:

●Optional nitrogen device, flow, purity automatic regulation system, remote monitoring system, etc;

●It is convenient to use zeolite molecular sieve, qualified oxygen can be provided in about 20 minutes.;

●Continuous display of oxygen purity, adjustable oxygen flow and pressure;

● Excellent quality control to ensure long-term more safe and reliable operation;

● The product has high purity and can produce qualified oxygen according to the requirements of users;

●The special program-controlled valve and high-efficiency gas distributor make the adsorbent life longer: the service life of adsorbent is half long, and the adsorbent can generally be used for more than ten years under normal operation.



Application fields:

PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.



Technical parameters:

● Oxygen delivery: ≤75Nm3/hr;

● Purity: 93%±3

● Pressure: 0.4~1.0 Mpa

● Atmospheric dew point: ≤-40℃

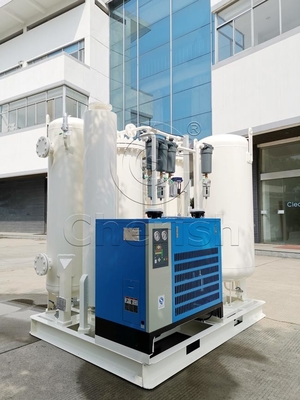

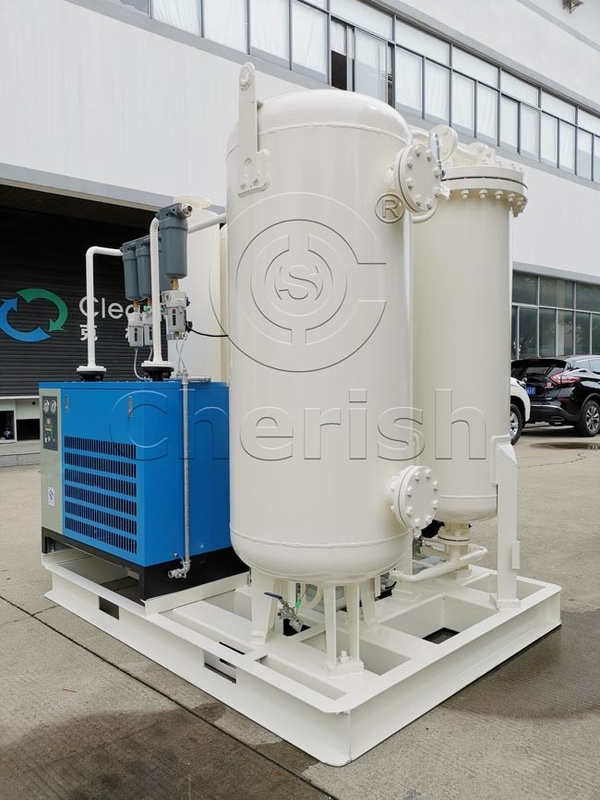

Product picture:

PSA Oxygen Plant With  Flow And Purity Automatic Regulation System 0
