Product Details:
|
| Material: | Steel | Color: | Bright Or Customized |
|---|---|---|---|
| Oxygen Output: | ≤30Nm3/hr | Purity: | 93%±3 |
| Pressure: | 0.4~1.0Mpa | Atmospheric Dew Point: | ≤－40℃ |
| High Light: | 0.4Mpa PSA Oxygen Generator,30Nm3/hr PSA Oxygen Generator,93% Purity Industrial Oxygen Generator |
||
Low Energy Consumption For PSA Oxygen Generator In Industry
|
Product name |
PSA Oxygen Generator |
|
Oxygen delivery |
≤30Nm3/hr |
|
Purity |
93%±3 |
|
Pressure |
0.4~1.0 Mpa |
|
Atmospheric dew point |
≤－40℃ |
Working Principle Description:
Taking clean compressed air as raw material and using high-quality zeolite molecular sieve as adsorbent to produce oxygen from air under standard condition. When the compressed air was purified and dried , and then carried out in by adsorption and desorption.it is known that the diffusion rate of nitrogen in zeolite molecular sieve is much faster than oxygen.
Oxygen will be enriched in the tank and nitrogen is adsorbed by zeolite molecular sieve preferentially. By controlling pressure, the nitrogen will be released. Generally, there are two adsorption towers in the system, one is for adsorption and oxygen generation, the other one is for desorption and regeneration. PLC program controller is used to control the opening and closing of pneumatic valve to make the two towers circulate alternately, so as to obtain higher purity oxygen (93%±3).
Product Advantages:
· The plant needs low energy to ensures the consumption ensures less capital investment;
· 93%±3 oxygen will be produced in 15 ~ 30 minutes;
· Fully automatic operation of the equipment, the whole process can be realized unattended;
· Compact and solid filling of molecular sieve ensures the plant work a long time;
· The stable and adjustable of the plant can help get required purity and flow rate of the oxygen;
· Reasonable structure, advanced process, safety and stability, low energy consumption;
· The PSA oxygen generator is an efficient way to produce oxygen than the bottled oxygen and liquid oxygen.
Application fields:
PSA oxygen generators are widely used in different areas, including medical, plateau, environmental protection, combustion-supporting, cultivation, laboratory, chemical industry, electron, medicine, food, marine, aluminium soldering, lithium cell, heat treatment, laser cutting and etc.
Technical parameters:
● Oxygen delivery ≤30Nm3/hr;
● Purity 93%±3
● Pressure 0.4~1.0 Mpa
● Atmospheric dew point ≤－40℃

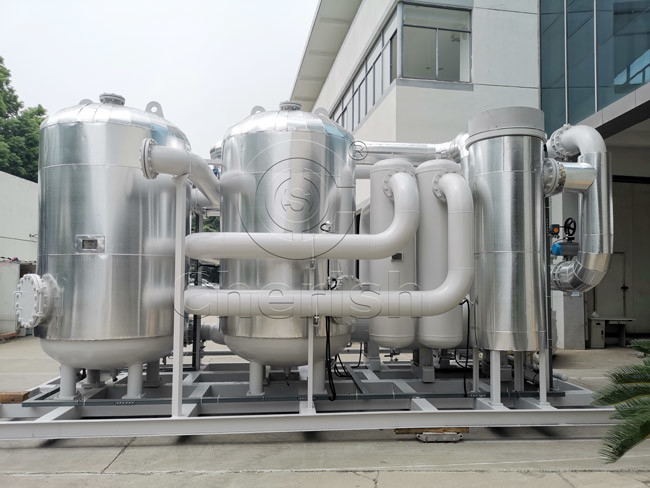

Product picture:
