|Pressure:||≤0.7Mpa||Atmospheric Dew Point:||≤－40℃|
psa type nitrogen generator,
nitrogen generation plant

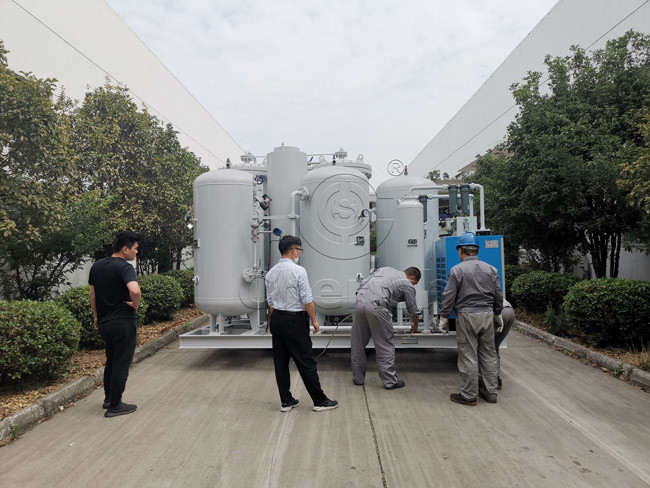

PSA industrial nitrogen gas generating plant used for laser cutting
1, Description of principle:
Pressure swing adsorption nitrogen production device takes clean compressed air as raw material, carbon molecular sieve as adsorbent, and USES pressure swing adsorption principle to obtain nitrogen at room temperature. According to the differences in the amount of oxygen and nitrogen adsorbed on the surface of carbon molecular sieve and the different diffusion rates of oxygen and nitrogen in carbon molecular sieve, the programmable controller controls the opening and closing of the program-controlled valve to realize the process of pressurized adsorption and decompression and desorption, complete the separation of oxygen and nitrogen, and obtain the required purity nitrogen. The whole nitrogen generator system is composed of: air compressor provides air source for nitrogen generator. Nitrogen is separated from the compressed air and concentrated in a low-pressure nitrogen storage tank. The nitrogen is then passed from the low-pressure nitrogen storage tank to the final high-pressure nitrogen storage tank through the high-pressure nitrogen pressurization device.
2, Product Feature:
Stable and adjustable pressure, purity and flow to meet different needs of customers
● Nitrogen output —— 55Nm3/hr
● Purity ——99.99%
● Pressure ——≤0.7Mpa
● Atmospheric dew point ——≤－40℃
Note: lower oxygen content and dew point requirement, NP-series nitrogen purification device is optional.
Date of delivery:75 days after receiving deposit,
Monthly output:60 sets/month
Payment term:30% deposit against the signed PI,70% balance should be paid before shipment.
After Sales:Factory site installation and debugging qualified acceptance
